Detail produk:
|
| Nama: | Penjepit Selang Inggris | Bahan: | stainless steel 304 / baja galvanis |
|---|---|---|---|
| ukuran merek: | 9.7 / 11.7mm | Pemakaian: | Pipa penjepit |
| rentang penjepitan: | 8-14 / 277-307mm | Jadi: | berlapis seng |
| Cahaya Tinggi: | pin insulasi rockwool,pin insulasi saluran |
||
spesifikasi British Hose Clamp Dengan Tabung Perumahan, Insulation Metal Clamping Band Selang Klip
| rentang penjepit mm | lebar merek mm | pcs / tas | pcs / karton | disarankan installtorque |
| 8-14 | 9.7 | 100 | 2000 | 3,0Nm |
| 11-17 | 9.7 | 100 | 2000 | 3,0Nm |
| 13-20 | 9.7 | 100 | 2000 | 3,0Nm |
| 15-24 | 9.7 | 100 | 2000 | 3,0Nm |
| 18-28 | 9.7 | 100 | 2000 | 3,0Nm |
| 22-32 | 9.7 | 50 | 1000 | 3,0Nm |
| 26-38 | 9.7 | 50 | 500 | 3,0Nm |
| 32-44 | 9.7 | 50 | 500 | 3,0Nm |
| 38-50 | 9.7 | 50 | 500 | 3,0Nm |
| 44-56 | 9.7 | 25 | 500 | 3,0Nm |
| 50-65 | 9.7 | 25 | 250 | 3,0Nm |
| 58-75 | 9.7 | 25 | 250 | 3,0Nm |
| 68-85 | 9.7 | 10 | 250 | 3,0Nm |
| 77-95 | 9.7 | 10 | 250 | 3,0Nm |
| 15--24 | 11.7 | 50 | 500 | 4.8Nm |
| 19--28 | 11.7 | 50 | 500 | 4.8Nm |
| 22--32 | 11.7 | 50 | 500 | 4.8Nm |
| 26--38 | 11.7 | 50 | 500 | 4.8Nm |
| 32--44 | 11.7 | 50 | 500 | 5.2Nm |
| 38--50 | 11.7 | 50 | 500 | 5.2Nm |
| 44--56 | 11.7 | 25 | 500 | 5.2Nm |
| 50--65 | 11.7 | 25 | 500 | 5.2Nm |
| 58--75 | 11.7 | 25 | 200 | 5.2Nm |
| 68--85 | 11.7 | 25 | 200 | 5.2Nm |
| 77--95 | 11.7 | 10 | 200 | 5.2Nm |
| 87--112 | 11.7 | 10 | 200 | 5.2Nm |
| 104--138 | 11.7 | 10 | 100 | 5.2Nm |
| 130-1-165 | 11.7 | - | 100 | 5.2Nm |
| 150-180 | 11.7 | - | 100 | 5.2Nm |
| 175--205 | 11.7 | - | 100 | 5.2Nm |
| 200--231 | 11.7 | - | 50 | 5.2Nm |
| 226--256 | 11.7 | - | 50 | 5.2Nm |
| 251--282 | 11.7 | - | 50 | 5.2Nm |
| 277--307 | 11.7 | - | 50 | 5.2Nm |

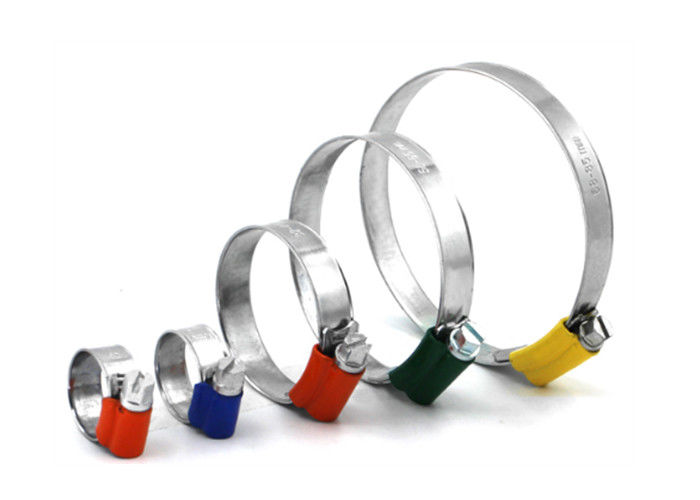

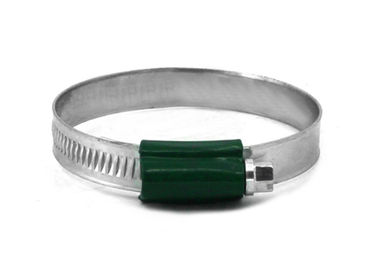

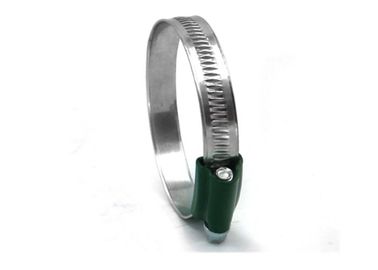

perincian British Hose Clamp Wth Tube Housing, Insulation Metal Clamping Band Selang Klip
Perbedaan pengobatan permukaan:
Galvanizing treatment: (blue white zinc, multicolored zinc, military green, brown, black, etc.); Pengobatan galvanisasi: (seng putih biru, seng beraneka warna, hijau militer, coklat, hitam, dll.); The corrosion resistance is 48-96 hours Ketahanan korosi adalah 48-96 jam
Zinc aluminum coating: (Dacromet, Jiumei, Meili, etc.); Lapisan aluminium seng: (Dacromet, Jiumei, Meili, dll.); The corrosion resistance is 120-1080 hours. Ketahanan korosi adalah 120-1080 jam.
Metal coating: (Zn-Ni alloy, gold plating, silver plating, copper plating, etc.); Pelapisan logam: (paduan Zn-Ni, pelapisan emas, pelapisan perak, pelapisan tembaga, dll.); The corrosion resistance is 240-720 hours. Ketahanan korosi adalah 240-720 jam.
British Hose Clamp Dengan Tabung Perumahan banyak digunakan di berbagai bidang seperti sirkuit oli mobil, pipa mesin, pipa drainase,
bahan bangunan, perangkat keras, dll.
