Detail produk:
|

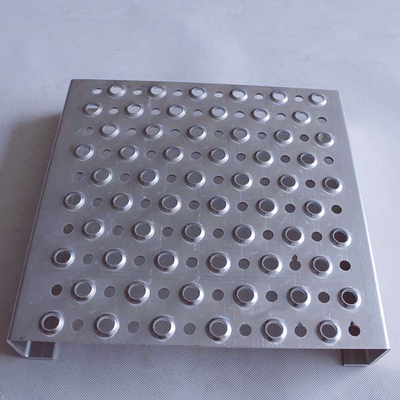

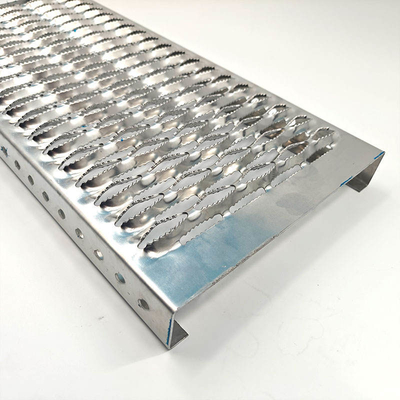

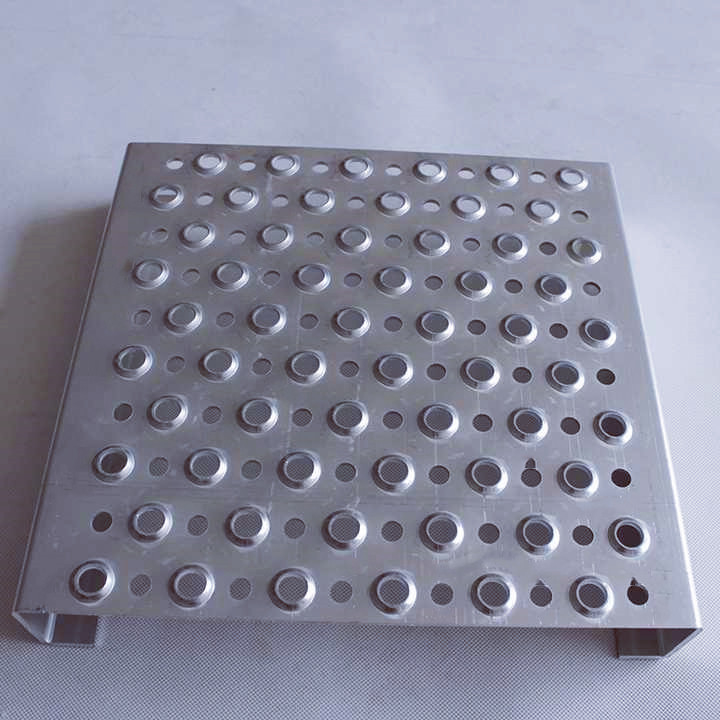

Nama: | Papan kisi pengaman galvanis | Panjang: | kurang dari 6000mm |
---|---|---|---|
Lebar: | 182mm-356mm | Ketinggian: | 30mm, 50mm, 75mm |
ketebalan material: | 2mm, 2,5mm, 3mm | Bahan: | paduan alu, GS, SS |
Pengolahan Permukaan: | berwarna jadi selesai | Adat: | EDGE DEISGN, Desain FIXING |
Menyoroti: | Grating Strut Grip anti selip,Grating Strut Grating lantai industri,Grip Strut Grating 182mm |
Atribut | Nilai |
---|---|
Nama | Papan kisi pengaman galvanis |
Panjang | Kurang dari 6000mm |
Lebar | 182mm-356mm |
Tinggi | 30mm, 50mm, 75mm |
Ketebalan material | 2mm, 2.5mm, 3mm |
Bahan | Paduan aluminium, baja galvanis, baja tahan karat |
Perawatan permukaan | Berwarna jadi selesai |
Opsi khusus | Desain tepi, desain memperbaiki |
Bahan | Ketebalan | Lebar standar | Panjang maksimal | Tinggi standar |
---|---|---|---|---|
Baja galvanis | 2.0mm, 2.5mm | 182mm-356mm | 6000mm | 30mm, 50mm, 75mm |
Baja tahan karat | 2.0mm | 182mm-356mm | 6000mm | 30mm, 50mm, 75mm |
Paduan Aluminium | 2.0mm, 2.5mm, 3mm | 182mm-356mm | 6000mm | 30mm, 50mm, 75mm |
Katalog | Lebar (inci) | Bahan | Span (inci) | Kedalaman (inci) |
---|---|---|---|---|
SST-5 SST-7 SST-10 SST-12 | 5 ", 7", 10 ", 12" | 13 baja pengukur | Hingga 30 | 1-1/2 " |
11 baja pengukur | 31-48 | 2 " | ||
0,125 aluminium | Hingga 42 | 2 " |
Bahan | Ketebalan | Berat per meter (kg) | ||
---|---|---|---|---|
Baja stainless/baja galvanis | 2mm | 3.9kg (30mm) | 4.6kg (50mm) | 5.4kg (75mm) |
2.5mm | 4.9kg (30mm) | 5.7kg (50mm) | 6.7kg (75mm) | |
Paduan Aluminium | 3mm | 2.0kg (30mm) | 2.4kg (50mm) | 2.8kg (75mm) |
