2.7x50mm Copper Coated Cup Head Insulation Weld Pins With Retaining Washer

2.7x50mm Copper Coated Cup Head Insulation Weld Pins With Retaining Washer
2.7x50mm Copper Coated Cup Head Insulation Weld Pins With Retaining Washer
2.7x50mm Copper Coated Cup Head Insulation Weld Pins With Retaining Washer 2.7x50mm Copper Coated Cup Head Insulation Weld Pins With Retaining Washer 2.7x50mm Copper Coated Cup Head Insulation Weld Pins With Retaining Washer 2.7x50mm Copper Coated Cup Head Insulation Weld Pins With Retaining Washer

Gambar besar :  2.7x50mm Copper Coated Cup Head Insulation Weld Pins With Retaining Washer

Detail produk:
Tempat asal: Tiongkok
Nama merek: HUIHAO
Sertifikasi: ISO9001-2015
Nomor model: 2.7x50mm
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 50000 buah
Kemasan rincian: dengan karton atau ember untuk diminta, lalu di palet
Waktu pengiriman: 10 hari setelah konfirmasi pesanan
Syarat-syarat pembayaran: L/C, T/T
Menyediakan kemampuan: 100.000 pcs per 10 hari
Kontak

2.7x50mm Copper Coated Cup Head Insulation Weld Pins With Retaining Washer

Deskripsi
Nama: Pin las isolasi Materia: Baja galvanis, dilapisi tembaga, baja tahan karat
basis dia: 25mm, 30mm Tipe dasar: dengan kertas terisolasi atau tanpa
Pin Dia: 2.7mm,3.0mm,3.4mm panjang pin: Kesamaan 25mm,50mm,75mm, lainnya sesuai permintaan
Kemasan: dengan karton atau ember Melayani: DDP melalui laut atau udara
Menyoroti:

copper coated weld pins

,

insulation weld pins with washer

,

2.7x50mm stud welding pins

2.7x50mm Copper Coated Cup Head Insulation Weld Pins With Retaining Washer



Cup Head Insulation Weld Pins Produce Introduce :



Cup head Insulation weld pin is a weld style insulation fastener, these cup head weld pins are

made up of a washer assembled with a pin, they are applied with a stud welding machine. After

the insulation material is ready in place, weld the cup head weld pins directly through the

insulation to the sheet metal, then the insulation work is finished, so the cup head weld pins

is a labor-saving insulation fastener, it is widely accepted in insulation markets for use in industrial

and commercial applications.



Specification of Cup Head Insulation Weld Pins  :



Specification of cup head insulation weld pins
Size Washer dia :25mm,30mm

Pin dia :2.7m,3.0mm,3.4mm

Pin length :25mm,38mm,50mm,75mm,100mm,120mm,130mm,150mm,

170mm up to 300mm
Material pin Stainless steel ,Mild steel ,Copper
base Stainless steel ,High strength galvanized steel ,Copper
surface treatment Copper or galvanized plating
Product features Simple construction, high efficiency, saving labors
Easy and firm welding
Sharp point for easy going through any insulation material
Base with paper washers are used for aluminum foil faced insulation material
Pins with tubes are used for tin foil faced insulation material
Length tolerance ±0.1mm
Production workmanship Automated production
Packing Packing can be customized as per requirements
Current packing information available upon request.
Application Being used in HVAC,fixing various insulation to air duct work



Pic of Cup Head Insulation Weld Pins  :



2.7x50mm Copper Coated Cup Head Insulation Weld Pins With Retaining Washer 0

Cup head insulation weld pins



Material :mild steel

Surface treatment :galvanized

Base size :25mm,30mm

Base type:without insulation paper

Pin dia :2.7mm,3.0mm,3.4mm,

Pin length :25mm-300mm

Cup head insulation weld pins



Material :mild steel

Surface treatment :galvanized

Base size :25mm,30mm

Base type:with insulation paper

Pin dia :2.7mm,3.0mm,3.4mm,

Pin length :25mm-300mm

 2.7x50mm Copper Coated Cup Head Insulation Weld Pins With Retaining Washer 1
2.7x50mm Copper Coated Cup Head Insulation Weld Pins With Retaining Washer 2

Cup head insulation weld pins



Material :mild steel

Surface treatment :coper coated

Base size :25mm,30mm

Base type:without insulation paper

Pin dia :2.7mm,3.0mm,3.4mm,

Pin length :25mm-300mm

Cup head insulation weld pins



Material :mild steel

Surface treatment :galvanized

Base size :25mm,30mm

Base type:with gold seal

Pin dia :2.7mm,3.0mm,3.4mm,

Pin length :25mm-300mm

 2.7x50mm Copper Coated Cup Head Insulation Weld Pins With Retaining Washer 3
2.7x50mm Copper Coated Cup Head Insulation Weld Pins With Retaining Washer 4



Recommended for insulation thickness:



recommended for pin length before welding
1/2" insulation(all densities) 12.67mm
1" insulation(1-1/2"ib density) 17.63mm
1" foam 25.55mm
1"insulation(3ib densities) 23.72mm
1-1/2" insulation(all densities) 28.42mm
2"insulation(1-1/2"-2" ib density) 37.95mm
2"insulation(3ib densities) 48.77mm
3"insulation(all densities) 69.85mm
4" insulation(all densities) 95.00mm

2.7x50mm Copper Coated Cup Head Insulation Weld Pins With Retaining Washer 5

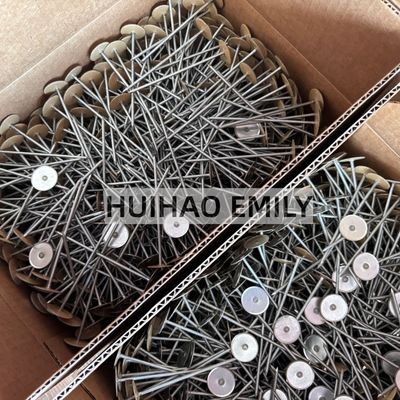

Package of Cup Head Insulation Weld Pins :



2.7x50mm Copper Coated Cup Head Insulation Weld Pins With Retaining Washer 6

Package of Cup Head Insulation Weld Pins :

>> Package
1. 1000pcs/2000pcs by carton or pail to be request ,then on pallet.

2. to be your requirements.

>>> Delivery
Sample: DHL/EMS/UPS/TNT/EXPRESS
Large Order: we recommend you by SEA ,or by AIR if in an emergency.



HUIHAO COMPANY :



HUIHAO company is a insulation

fasteners/insulation anchors manufacturing company,
we produce all kinds of insulation pins and washers.can make mold according your drawing pic ,Our products
is as following :


1.perforated base insulation pins

2.self adhesive pins

3.CD weld pins

4.Bimetallic pin

5.Cup head weld pins

6.Lacing Anchors&Quilting pins &lacing hooks washer

7.all kinds of self locking washers, Dome caps.

 2.7x50mm Copper Coated Cup Head Insulation Weld Pins With Retaining Washer 7
